PRODUCT DEMONSTRATION01 / 01
The complete care experience
From loading a jacket to the finished routine. Discover the cabinet in our product presentation.
1:04WashDry Cabinet for hotels, laundries & distributors.For business · OEM / ODM
WASHDRY CABINET · HOTELS · BUSINESS · HOME
WashDry Cabinet.
The all-in-one washer dryer cabinet.
The LINGCHONG WashDry Cabinet is an all-in-one washer dryer cabinet that washes, dries and cares for garments on the hanger: they are cleaned with a hanging spray, then dried with intelligent auto-stop drying. No tumbling, fewer wrinkles and a fresh scent. It works in hotels, commercial venues and homes; we supply distributors, OEM partners and project buyers.
WASH · DRY · CAREHOTELS · LAUNDRIES · OEM / ODM
Hanging spray wash · no tumblingFewer wrinkles · fresh scentPrivate in-room garment careSee specifications
WHAT IT IS
An all-in-one washer dryer cabinet.
Not a storage cabinet.
Not a traditional washing machine. A new way of living.
Many cabinets sold for laundry rooms are furniture: they store clothes or house a washing machine. The WashDry Cabinet is a powered garment care appliance with a water inlet and a drain. Garments hang inside, are washed with a hanging spray and then dried, staying on the hanger from start to finish. Because they dry while hanging, garments come out with fewer wrinkles, which reduces the need for ironing, and the built-in aroma box adds a fresh scent.
Storage cabinets, LG Styler and LINGCHONG
Storage, steam refreshing and wash-and-dry care serve different garment needs. Choose the process you need, then check the installation requirements.
Swipe or scroll sideways to compare.
| Item | Storage / laundry-room furnitureOrdinary furniture | LG Styler S3WFBNUS version · 120 V | LINGCHONG single-doorFactory reference configuration |
|---|---|---|---|
| Purpose | Stores garments, laundry supplies or appliances; the cabinet furniture itself does not process garments. | Steam garment care; no washing function. | Washes garments on hangers with a spray, then dries and cares for them in the same cabinet. |
| Rated power | Ordinary cabinet furniture has no wash-and-dry appliance power rating. | 1500 W; 120 V, 60 Hz, 12.5 A. | 1600 W; 110 V or 220 V configuration selected for the order. Follow the unit nameplate. |
| Connections | The cabinet furniture itself needs no garment-care water inlet or drain. | Requires manual refilling of the clean-water tank and emptying of the drain tank, adding routine handling. | Connect the water inlet, drain and power supply, then use the cabinet without manually filling or emptying water tanks. |
| Drying | Does not dry garments. | Gentle Dry uses low temperatures and indirect heat from a heat-pump system. | Start Smart Dry; it runs automatically and stops when its sensor detects that the garments are dry. For timed drying, select the duration manually. |
| Garment care | Hanging rails, shelves or other garment-storage space. | Steam refreshing helps reduce odors and wrinkles. Pants Press maintains creases and smooths wrinkle-prone areas. | Hanging wash-and-dry care reduces wrinkles and the need for ironing; the aroma box adds a fresh scent. |
| Care features | Storage features depend on the furniture configuration. | Refresh, Sanitary, Gentle Dry and Pants Crease; ThinQ offers downloadable care cycles. | Automatic detergent dispensing and dilution, aroma box and winter garment preheat, plus fabric programs and scheduling. |
| Capacity | Depends on cabinet dimensions, hanging rails and shelf layout. | 3 hanging garments + 1 pair of trousers; maximum 11.4 lb (about 5.2 kg). | 8 thin garments or 4 thick garments. Select the load for garment thickness, fabric and program. |
| Private use (scenario) | Personal garment storage. | Can be planned for private-room garment care, subject to installation requirements. | Can be planned for private-room garment washing and drying, subject to water, drain and electrical requirements. |
| Intended settings | Wardrobes, laundry-room storage or appliance-surround furniture. | Household garment refreshing and gentle drying; room placement depends on the installation conditions. | For homes, hotels, laundries, dry cleaners and cruise ships; available for distributors, OEM partners and project buyers. |
SEE LINGCHONG IN ACTION
Care you can see.
Details worth a closer look.
Watch the WashDry Cabinet presentation. See inside the care cycle on the product page.
HOW IT WORKS
Wash, dry, then care.
All in one cabinet. All in one go.
Garments hang inside and are first washed with a hanging spray. Intelligent drying then starts in the same cabinet, so nothing moves to a separate dryer. Garments stay on the hanger from wash to dry, with no drum and no tumbling.
1. Hanging spray wash
A spray cleans garments while they hang. Detergent is dispensed and diluted automatically.
2. Intelligent drying
Right after the wash, the cabinet dries the same garments. Temperature and humidity sensing stops drying automatically when garments are dry, or choose a timed dry of 60, 120, 150 or 180 minutes.
3. Ready to wear
Garments dry while hanging, so they come out with fewer wrinkles and need less ironing. The aroma box adds a fresh scent, fabric programs cover regular garments, coats, silk and wool, and winter preheat can have them warm when you take them out.
Private by design
In a room or suite, guests wash and dry personal and intimate garments themselves, without handing them to staff or putting them into shared or public machines.
A typical wash-and-dry cycle takes 2–3 hours, depending on program and load. Follow the garment care label and the operating instructions.
APPLICATIONS · COOPERATION PLANS
One product.
Many scenarios.
The same WashDry Cabinet serves hotels, laundromats, dry cleaners and cruise ship cabins. Distributors and OEM partners can also resell it for homes, apartments and villas. Each scenario has its own cooperation plan: who it is for, installation requirements and how to start.
01 / HOTELS
Hotels
Private in-room garment care: guests wash and dry their own garments without handing them to staff. Also for guest laundry rooms and uniforms.
Hotel cooperation plan
02 / CRUISE SHIP CABINS
Cruise ship cabins
Private in-suite garment care for premium cabins, plus a crew laundry option. Installation is checked with the ship operator first.
Cruise cooperation plan
03 / LAUNDROMATS
Laundromats
A premium hang-wash add-on service for coats and garments customers prefer not to tumble, priced per cycle by you.
Laundromat cooperation plan
04 / DRY CLEANERS
Dry cleaners
A hanging wash-and-dry line for garments whose care label allows water washing. It does not replace dry cleaning.
Dry cleaner cooperation plan
05 / DISTRIBUTORS & OEM
Distributors & OEM
Add the WashDry Cabinet to your range or build it under your brand with OEM / ODM, then resell it to hotels and businesses, or to households, apartments and villas in your market. Custom colors available.
Distributor & OEM optionsBUSINESS ENQUIRIES
Tell us about
your requirements.
Leave your email or chat with us on WhatsApp. Ask about the product, a sample or your project.
You can order one sample unit for testing.
PROGRAMS & CONTROLS
Care at
your fingertips.
Every program is selected on one panel. Here is what each feature does.
- 01
Smart Wash & Dry
Spray wash, then intelligent drying, in one 2–3 hour cycle.
- 02
Hanging Spray Wash
Garments stay on the hanger, with no drum and no tumbling.
- 03
Smart Dry
Temperature and humidity sensing stops drying automatically when garments are dry.
- 04
Timed Dry
Choose a fixed drying time of 60, 120, 150 or 180 minutes.
- 05
Fabric Programs
Settings for regular garments, coats, silk and wool; follow the care label.
- 06
Flexible Scheduling
Delay the start so garments are ready when you need them.
- 07
Automatic Detergent Dispensing
Detergent is dispensed and diluted automatically for every wash.
- 08
Aroma Box
Add aroma chips for a fresh scent during every care cycle.
- 09
Winter Preheat
Warms garments at a set time, before you take them out.
- 10
Auto Clean
A maintenance program cleans the care chamber between loads.
CABINET BODY MATERIAL
A five-layer panel,
wrapped in aluminum alloy.
The cabinet body is made of fluorocarbon aluminum composite panel. A PVC foam core is wrapped in aluminum alloy on both sides, and a clear fluorocarbon coating protects the panel surface.
Five layers, outside to inside
- 1Clear fluorocarbon coating
- 2Aluminum alloy
- 3PVC foam core
- 4Aluminum alloy
- 5Clear fluorocarbon coating
Why this panel
- Fully wrapped in aluminum alloyAluminum alloy skins cover both sides of the foam core.
- Heat-insulatingThe foam core between the aluminum skins insulates the cabinet body.
- Flame-retardantA flame-retardant composite panel for the cabinet body.
- LightweightThe PVC foam core keeps the panel light and stable.
- Protected surfaceA clear fluorocarbon coating protects the panel surface.
Custom colors available
The cabinet finish can be customized for hotels, brands and distributors. Tell us your color in your inquiry.
PLAN YOUR INSTALLATION
WashDry Cabinet
specifications.
Standard model
Check your installationInstallation
Water inlet, drain and electrical supply: 110 V or 220 V order configuration; rated power 1600 W
Confirm dimensions, electrical supply, water connections and clearance before ordering. Configuration and cycle time vary by program and load. Units ship by sea freight.
Performance
- Model
- LC-308
- Washing method
- Hanging spray wash (no tumbling)
- Detergent
- Automatic dispensing and dilution
- Drying
- Intelligent drying with auto-stop
- Timed drying
- 60 / 120 / 150 / 180 min
- Typical cycle
- 2–3 hours
- Capacity
- 8 lightweight garments or 4 thick garments (single-door reference)
Dimensions & weight
- Dimensions
- 190 × 60 × 62 cm
- Net weight
- 80 kg
- Package dimensions
- 208 × 68 × 71 cm
- Gross weight
- 96 kg
Electrical
- Voltage
- 110 V version or 220 V version (order configuration)
- Rated power
- 1600 W
- Water per wash
- 60 L
- Electricity per cycle
- Approximately 3.5 kWh
Build & finish
- Cabinet body
- Fluorocarbon aluminum composite panel (5 layers)
- Finish / color
- Custom colors available for hotels, brands and distributors
WORKING WITH LINGCHONG
From first inquiry
to shipping.
Distributors, OEM / ODM partners and project buyers follow the same simple path. Tell us your scenario and destination by email, WhatsApp or the form, and we review the fit, configuration and shipping with you.
OEM / ODM & order planning
OEM orders start at 10 units. Cabinet dimensions, colors and appearance can be customized, including double-door configurations. Samples take 15 days. Production for orders of 10 units or more takes 20 days. A pre-order of 100 units includes one-year exclusive sales rights for the agreed country.
Requirement alignment
Market, channel, cabinet format, and intended configuration.
Engineering confirmation
Dimensions, voltage, finish, materials, and installation details.
Sample review
Review the sample against your agreed specifications.
Production planning
Confirm quantities, destination, and delivery requirements.
International delivery
LINGCHONG WashDry Cabinets ship by sea through Shenzhen Shekou, China. FOB and CIF quotations are available. For orders of 54 units or more, LINGCHONG covers sea freight from the factory to the agreed overseas destination port. This freight offer excludes insurance. For CIF orders, the insurance arrangement and cost are stated separately in the written quotation. Before ordering, confirm the destination port, shipping terms, covered freight items and insurance in writing. Production lead time and the sea-transit schedule are confirmed separately.
OUR STORY
Ten years of furniture making.
Easier care for everyday life.
Foshan Honghu Technology Co., Ltd.
LINGCHONG’s story began with Guangdong Suoaoer Furniture Co., Ltd. We bring ten years of experience in furniture development and manufacturing, with a background in drying cabinets and smart garment-care products. That experience keeps us asking how a cabinet can better serve everyday life.
Through years of selling and promoting our products, we saw a need for more convenient, intelligent garment care across different settings. People wanted fewer steps and a simpler way to move from washing to drying and care. Those observations set the direction for our WashDry Cabinet.
We began developing this product around four years ago. It went through dozens of iterations before reaching a version ready for sale. Today, the LINGCHONG WashDry Cabinet spray-washes garments while they hang, then dries and cares for them in the same cabinet. This reduces the need to move clothes between appliances and makes the routine easier.
We established Foshan Honghu Technology Co., Ltd. in 2024 to focus on developing and manufacturing this product. The company carries forward our furniture-making experience and our commitment to the continued development of intelligent garment care.
Our factory in Foshan covers 3,000 square metres. We supply distributors, brands and project buyers and offer OEM cooperation. Cabinet dimensions, colours and double-door configurations can be customized for different spaces and needs.
From furniture making to intelligent garment care, we focus on how a product works in everyday use. We continue to refine the WashDry Cabinet so that washing, drying and care can happen in one cabinet, making it easier to look after the clothes people wear every day.
10 yearsFurniture development and manufacturing experienceDozensProduct iterations before the version ready for sale3,000 m²Factory in Foshan2024Foshan Honghu established for this product

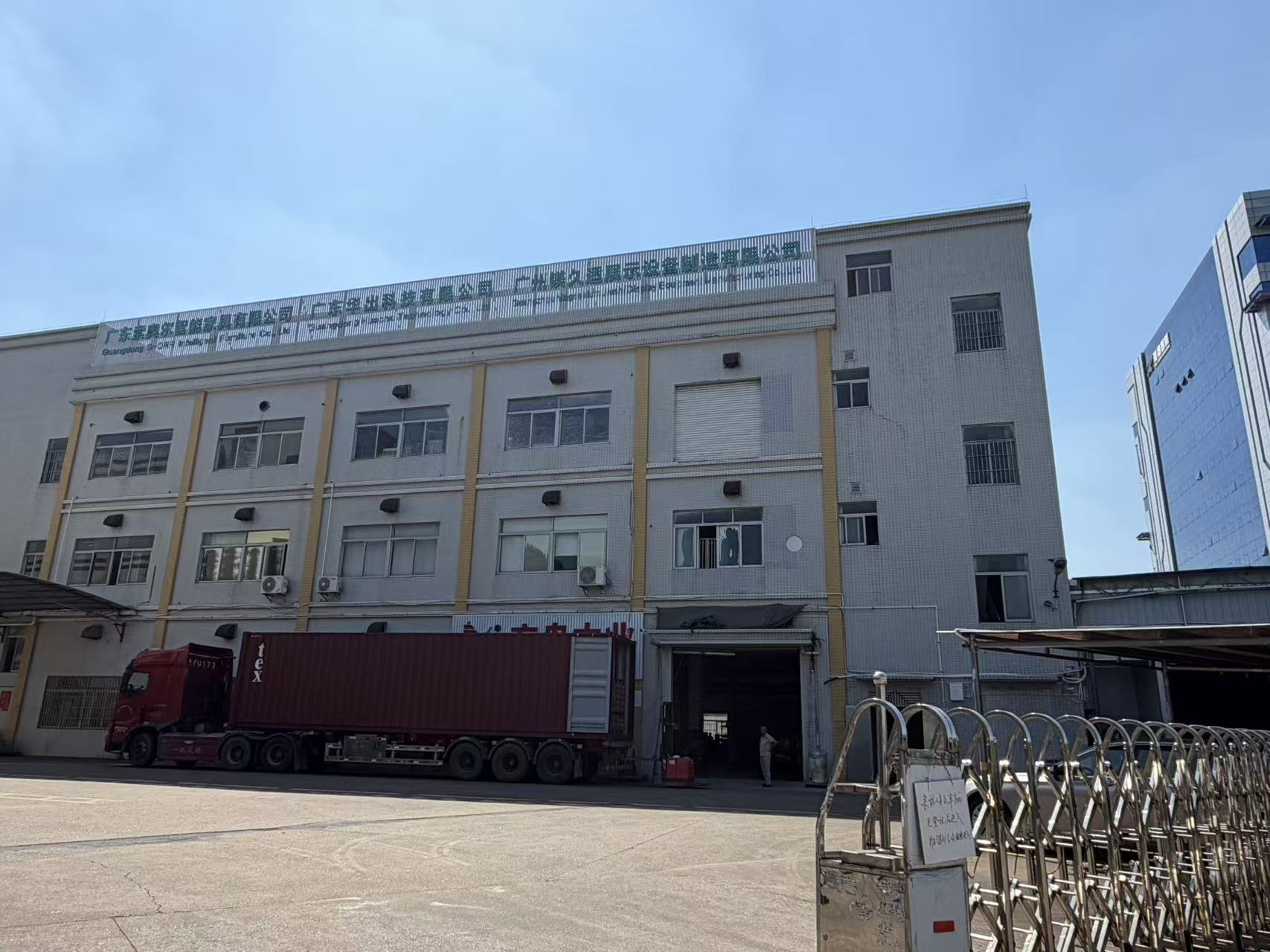

OUR FACTORY / FOSHAN, CHINA
Inside our factory.
A closer look at our Foshan facility, production workflow and preparation for shipment.
Appearance, configuration, accessories and order requirements are checked before export packing.
SELECT A PHOTO TO VIEW IN FULL ↗
Selected patent certificates
These are our patents for garment-care technology.
A FEW THINGS TO KNOW
WashDry Cabinet
questions & answers.
Short answers on the cabinet, installation and cooperation. For anything specific to your project, ask our team.
What is an all-in-one washer dryer cabinet?
The LC-308 washes garments with a hanging spray, then dries them in the same cabinet. Clothes stay on hangers throughout, without a rotating drum. It suits homes, hotels and commercial laundry spaces.
Is the WashDry Cabinet a storage cabinet?
It is a powered garment-care appliance that washes garments with a hanging spray and dries them in the same cabinet. Water inlet, drain and electrical supply: 110 V or 220 V order configuration; rated power 1600 W.
Does it tumble clothes?
No. Garments stay on hangers for the whole cycle. Cleaning is done with a hanging spray, and drying happens with the garments still hanging.
How many garments fit per load?
For the single-door reference cabinet, load 8 lightweight garments or 4 thick garments. Follow the garment program and loading guidance. Double-door cabinets can be customized. Confirm the configuration in your quotation.
How long does a cycle take?
A typical wash-and-dry cycle takes 2–3 hours, depending on program and load. For drying only, choose intelligent drying with auto-stop or a timed dry of 60, 120, 150 or 180 minutes.
Which programs are available?
Smart Wash & Dry, Smart Dry (temperature and humidity sensing supports automatic stop when dry), Timed Dry, fabric programs for daily garments, coats, silk and wool, flexible scheduling to delay wash and dry or delay heating, and an Auto Clean maintenance program for the care chamber. It also offers automatic detergent dispensing and dilution, a built-in aroma box for aroma chips, and winter garment preheat so garments are warm when you take them out.
What does installation require?
The single-door reference cabinet measures 190 × 60 × 62 cm (H × W × D) and weighs 80 kg net. Packed dimensions are 208 × 68 × 71 cm (H × W × D), with 96 kg gross weight. Check the floor and access route before ordering. Use the conventional washing-machine inlet and drain fittings supplied for the order. Leave 5 cm behind the cabinet for ventilation. Select a 110 V version or 220 V version and match the supply to the unit nameplate; rated power is 1600 W. The three-pin plug can be configured for the destination country. Confirm site connections before qualified personnel install the unit.
Do garments need ironing afterwards?
Garments dry while hanging, so they come out with fewer wrinkles, which reduces the need for ironing. Results depend on the fabric and the garment; some items may still need a touch-up.
Can guests wash personal garments privately?
Yes. With a WashDry Cabinet in the room or suite, guests wash and dry personal and intimate garments themselves, without handing them to staff or putting them into shared machines.
How do I start an inquiry?
Email gdlingchong@gmail.com, message us on WhatsApp at +86 185 7398 9700 or use the inquiry form. Tell us your scenario, destination country, voltage and the number of positions. Units ship by sea freight.
Is the WashDry Cabinet suitable for home use?
Yes, it suits homes, apartments and villas, but LINGCHONG does not sell directly to households. We supply distributors, OEM / ODM partners and project buyers, who can resell it in their markets. If you plan to sell to the home market, send us a distributor inquiry.
Do you offer OEM / ODM?
OEM orders start at 10 units. Cabinet dimensions, colors and appearance can be customized, including double-door configurations. Samples take 15 days. Production for orders of 10 units or more takes 20 days. A pre-order of 100 units includes one-year exclusive sales rights for the agreed country.
Who makes the WashDry Cabinet?
Foshan Honghu Technology Co., Ltd., established in 2024 in Foshan, China, develops and manufactures the LINGCHONG WashDry Cabinet. Our predecessor is Guangdong Suoaoer Furniture Co., Ltd., and our background includes ten years of furniture development and manufacturing. Our factory covers 3,000 square metres. We supply distributors, brands and project buyers and offer OEM customization. These are our patents for garment-care technology.
What about warranty and support?
We cover all components for three years from factory dispatch, excluding damage caused by misuse or other human actions. Covered replacement parts and their air freight are free during this period. Distributors handle local repairs through their service teams. We train those teams to maintain and repair the cabinet. After a fault is confirmed, the replacement parts reach the distributor within one week. After the warranty expires, parts are charged. Distributors set delivery and repair charges. If a manufacturing-quality problem is confirmed, the factory replaces the affected unit and covers the related freight. Contact us with your order details. Confirm the inspection and replacement arrangements in your purchase agreement.
How do I maintain the cabinet?
The filter in the water valve cleans itself and does not need to be removed for washing. The integrated inner chamber is self-cleaning; wipe it as part of daily care.
Which detergent does it use?
Use the dedicated detergent for washing. The cabinet dispenses about 50 mL per wash automatically. A 0.75 L refill lasts about 15 washes. A 1.5 L bottle costs US$10 and provides about 30 washes, or two refills.
